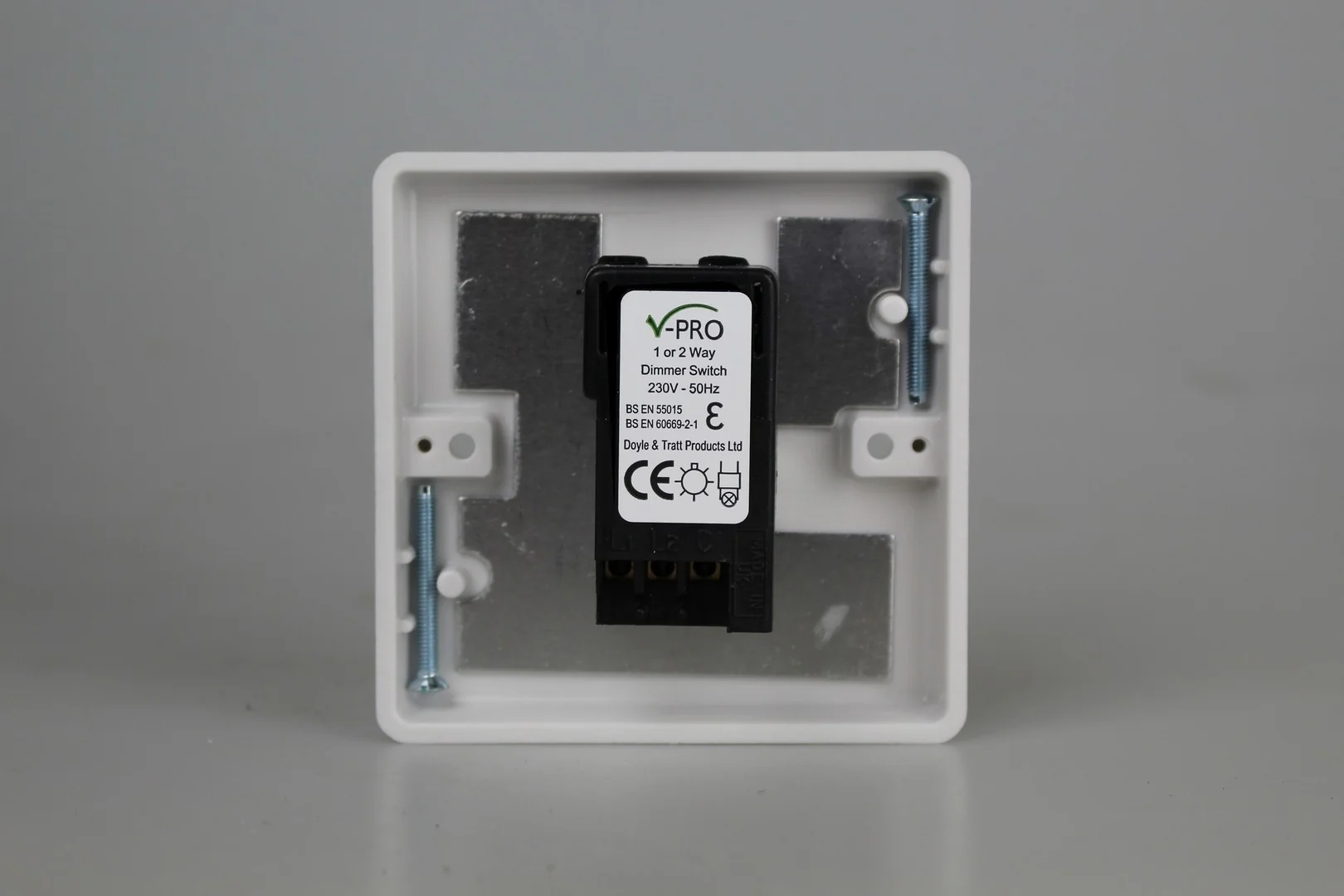

Product Description: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W
Dimensions:85x85x47mm
Faceplate Depth:11mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres:60.3mm
Depth from Mounting Face: 16.1mm
Recommended Back Box Depth:25mm
Operating Voltage:230v 50Hz
Maximum Load Rating:LED;120W
Maximum Current Rating: 1.3A
Terminal (Live) Diameter:3.2mm; Capacity:3 x 1.5mm²
Intended Applications:Indoor Use Only.Commercial & domestic lighting circuits including many dimmable LEDS.
Safety Advice:Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard:BS EN 60669-2-1
Commodity Code:85365005
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors. Do not overload.
